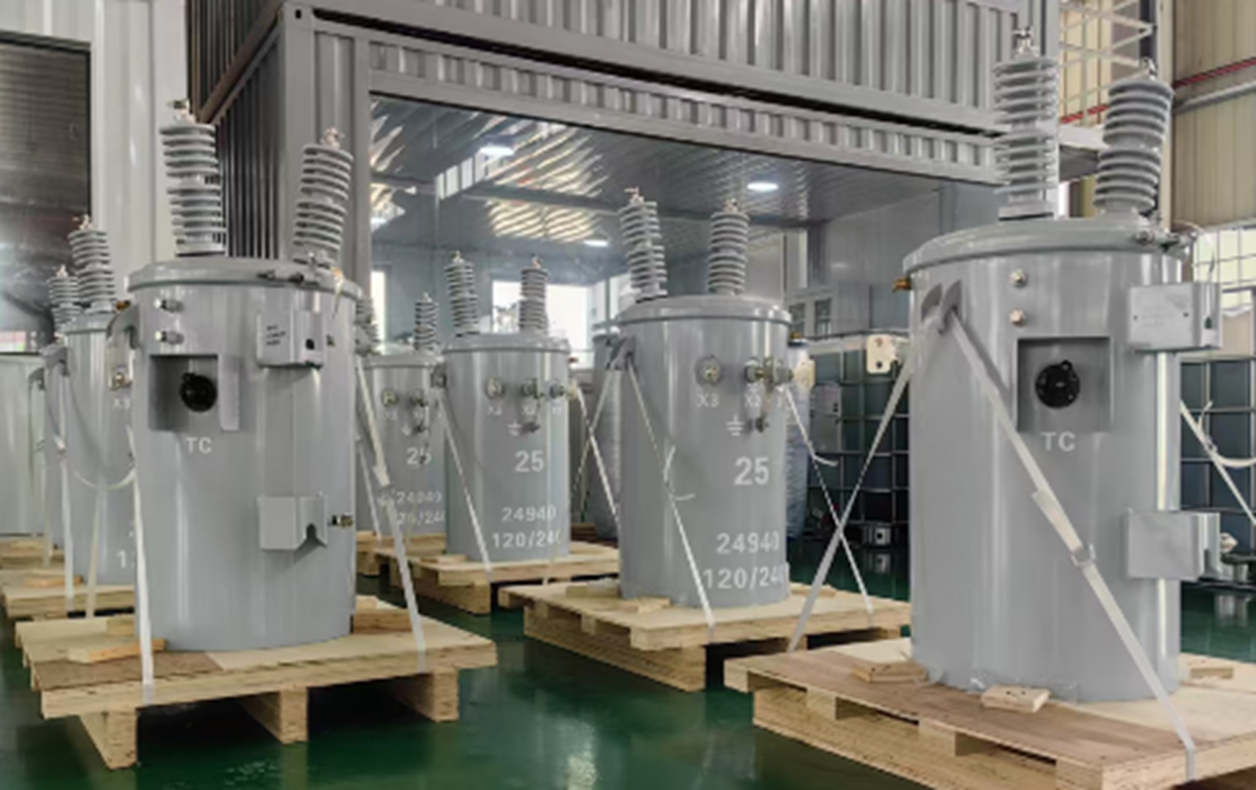

Our Cylindrical Single-Phase Transformer is a high-performance electrical device engineered for dependable voltage conversion and energy distribution in single-phase power systems. it is designed with precision and efficiency in mind, this transformer features a robust cylindrical core structure that ensures excellent magnetic performance, reduced energy losses, and enhanced thermal stability for long-term operation. Its compact, space-saving design makes it ideal for both industrial and residential applications, including lighting systems, control panels, small machinery, and voltage regulation equipment.
Compact Cylindrical Design:
The transformer’s cylindrical configuration allows for uniform magnetic flux distribution, improving energy efficiency and reducing operational noise and vibration.
High Efficiency & Low Loss:
Designed to minimize eddy current and hysteresis losses, ensuring optimal performance even under continuous load conditions.
Durable Construction:
Built with an insulated core and precision-wound coils, it provides exceptional resistance to mechanical stress and temperature fluctuations.
Thermal Stability:
High-grade insulation materials ensure excellent heat resistance and enhanced safety during long-term operation.
Customizable Voltage Ratings:
Available in a wide range of primary and secondary voltage options to meet diverse application needs.
Safety Compliant:
Fully compliant with IEC and ISO electrical standards, ensuring reliability and operational safety.
Quiet Operation:
Engineered to operate with minimal hum and noise, making it suitable for noise-sensitive environments such as offices and laboratories.
Type: Cylindrical Single-Phase Transformer
Rated Power: 50 VA to 10 kVA (customizable)
Primary Voltage: 110V / 220V / 240V (as required)
Secondary Voltage: 12V / 24V / 48V / Custom
Frequency: 50/60 Hz
Core Material: Cold Rolled Silicon Steel (CRGO)
Winding Material: Copper / Aluminum
Cooling Method: Natural Air Cooling (AN)
Insulation Class: Class F / H
Mounting Style: Cylindrical or Enclosed Type
Efficiency: ≥ 95%
Operating Temperature: -20°C to +55°C
The Cylindrical Single-Phase Transformer is widely used across various industries and electrical systems due to its versatility and reliability. Some common applications include:
Power supply systems for residential and commercial buildings
Control circuits in industrial automation
Lighting and HVAC systems
Renewable energy setups (solar and wind applications)
Laboratory and testing equipment
Signal isolation and voltage adaptation
Space-saving design ideal for compact installations
Energy-efficient performance with minimal power loss
High dielectric strength and overload capacity
Easy installation and low maintenance requirements
Excellent insulation for enhanced operational safety
Our transformers are precision-engineered using advanced manufacturing techniques to deliver consistent performance and longevity. Every unit undergoes rigorous testing and quality assurance, ensuring compliance with international standards and customer specifications. Whether for small-scale control systems or heavy-duty industrial applications, our cylindrical single-phase transformers guarantee stable voltage output, high reliability, and safe operation.
Custom primary and secondary voltage ratios
Enclosed or open-frame designs
Thermal protection options
Mounting configurations (vertical or horizontal)
Specialized insulation and coatings for harsh environments
