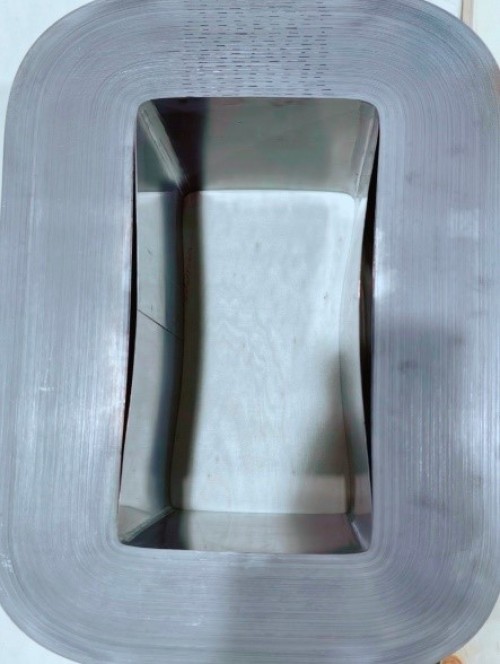

Our Single Phase Core Type iron core is engineered using high-grade silicon steel, offering exceptional magnetic properties, low core losses, and high permeability. Designed specifically for single-phase transformer applications, this core type ensures reliable performance, minimal energy loss, and enhanced efficiency in electrical systems.

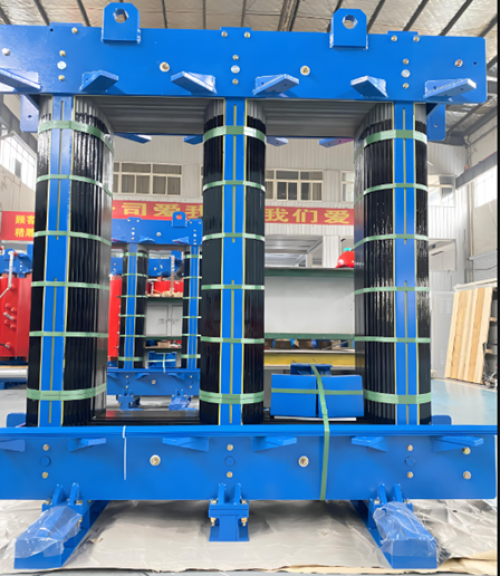

The dry iron core, commonly used in dry-type transformers, is constructed from laminated silicon steel sheets to minimize eddy current losses. It typically features a heart-type structure, consisting of a central core column wrapped with windings, flanked by upper and lower iron yokes. These components are held firmly in place by upper and lower clamps, ensuring structural stability and efficie
The three-phase five-leg silicon steel iron core is a specialized magnetic core structure used primarily in dry-type and cast resin transformers. Constructed from high-grade laminated silicon steel sheets, the core features three central limbs (one for each phase winding) and two outer return limbs that complete the magnetic circuit. This five-leg design ensures balanced flux distribution and r
The single-phase shell-type silicon steel iron core is a compact and efficient magnetic core configuration commonly used in small to medium power transformers. Unlike the core-type design, where windings are placed on separate limbs, the shell-type structure encloses the coil within a central limb, with two outer limbs completing the magnetic circuit. The core is typically made of laminated gra
Oil-immersed transformer uses oil as the main means of insulation and relies on oil as the cooling medium. Its core components include iron cores, windings, fuel tanks, oil pillows, respirators, explosion-proof tubes, radiators, insulating sleeves, tap-changers, gas relays, thermometers and oil purifiers. The core of the oil-immersed transformer is usually stacked with high permeability silicon
American single-phase transformers are designed to provide efficient and reliable voltage conversion and electrical isolation in residential, commercial, and light industrial applications. Built to meet ANSI, NEMA, and IEEE standards, these transformers ensure dependable performance and long service life.
Cylindrical single-phase transformer is a kind of transformer that uses insulating oil as the insulating medium, which is mainly used to convert high-voltage electrical energy into low-voltage electrical energy to meet the electricity demand of specific equipment. Its working principle is based on electromagnetic induction, when the alternating current passes through the primary winding, it wil

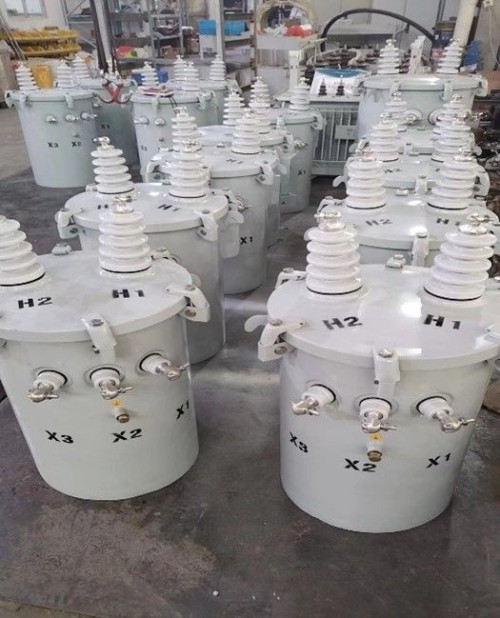

Oil-immersed single-phase transformer is a kind of transformer that uses insulating oil as the insulating medium, which is mainly used to convert high-voltage electrical energy into low-voltage electrical energy to meet the electricity demand of specific equipment. Its working principle is based on electromagnetic induction, when the alternating current passes through the primary winding, it wi

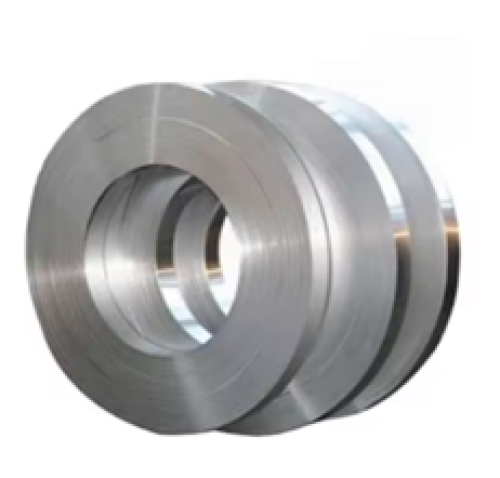

Silicon steel strip, also known as electrical steel or lamination steel, is a specially engineered material designed for electromagnetic applications where low core loss and high permeability are essential. It is primarily used in the manufacture of transformer cores, electric motors, generators, and other electromagnetic devices.

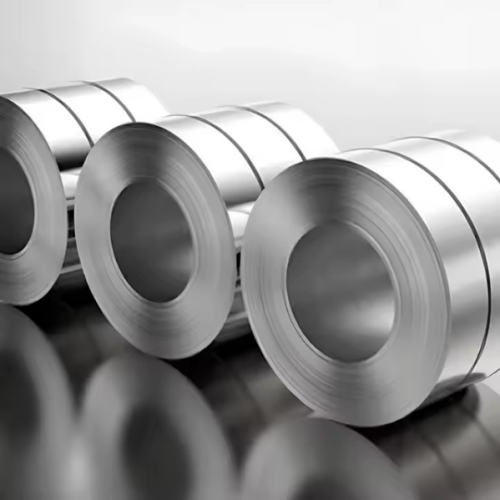

The main use of oriented silicon steel coil is to manufacture the iron core of various types of transformers, and its high permeability and low loss characteristics make it the core material in power transmission systems. Specific areas of application include: Power transformers
