Transformers are the silent powerhouse of electricity generation, standing quietly to ensure energy flows exactly where it should. But here’s what most people ignore. A transformer’s performance and functionality is only as good as its insulation. Minus the insulation from the equation, the whole structure becomes worthless, as it is vulnerable to short circuits, breakdowns, and fire hazards. Insulation isn’t just some filler material tucked between windings; it's much more than that.
But the big question is: what kind of insulation materials are used in transformers, and why do they matter so much? In this blog, you’ll see exactly how these materials aren’t just technical add-ons, but actual lifelines for the machines that keep the grid alive.
A transformer’s main job is to transfer electrical energy between circuits. That means winding after winding of copper or aluminum, tightly packed, carrying insane amounts of current. If those windings touch each other or arc across gaps without proper insulation, you’re looking at a catastrophic failure.
So insulation does two critical jobs. It keeps the electrical parts separate and isolated from each other, minimizing the risk. Secondly, it safeguards against environmental elements such as moisture, heat, dust, and chemicals that can disrupt the transformer's inner workings. The insulation is like a skin. Just as without skin your body wouldn’t survive more than a few seconds, the same is true for a transformer. No insulation, no life.
The first category is solid insulation. This is the physical barrier that sits right between conductors. It can be paper, pressboard, wood laminates, or even advanced polymers, depending on the design.
Paper is the classic. Yes, plain cellulose-based paper, but treated and processed until it becomes one of the most reliable insulators around. It absorbs oil beautifully, molds tightly around windings, and when kept dry, can last for decades.
Pressboard steps in when you need mechanical strength. You’ll see it around spacers, barriers, and channels. It’s tougher than paper, still compatible with oil, and handles the crushing forces inside large power transformers.
Modern designs sometimes lean on epoxy resins or polymer films. Why? Because they add heat resistance and don’t age as fast as cellulose under thermal stress. If you’re dealing with high-load transformers that constantly run hot, this is where solid synthetics shine.
So, if you decide on solid insulation, don’t cut corners on it. If the paper isn’t properly dried, or the pressboard isn’t precisely cut, you’re just planting a failure waiting to happen.
Liquid insulation introduces an innovative design twist. In such an insulation mechanism, the oil inside isn’t just cooling the system; it’s also actively insulating it.
Mineral oil is the industry standard. It’s cheap, widely available, and provides excellent dielectric strength. Pour it in, let it circulate, and you’ve got both cooling and insulation in one shot. But you must remember that mineral oil is flammable. Therefore, in environments where fire safety is critical, such as urban substations and offshore platforms, alternatives are needed.
That’s where synthetic esters and natural esters (vegetable oils) become a suitable insulation option that does the job well.. Esters don’t just provide strong insulation; they’re biodegradable and much less flammable. That’s why utilities in cities are switching over.
The golden rule to follow here is to pick your liquid based on the environment. Remote rural transformer? Mineral oil works fine. High-density urban grid? Esters are the alternative that can deliver effortlessly and even increase budget savings by protecting you against safety inspection penalties.
It might sound strange, but gases are also used as insulation in transformers. Ever heard of SF6 gas? In gas-insulated transformers, it’s a star player.
SF6 has incredible dielectric strength. It enables engineers to build compact transformers that can handle massive voltages, which is a win-win as it provides more performance in a smaller package. Gas-insulated transformers are the ideal solution for applications where space is limited, such as underground substations and tunnels.
But there is a big downside of using SF6: it is one of the most potent greenhouse gases on the planet. Utilities are aware of this, regulators are aware of this, and with an increased focus on sustainable energy generation, replacements are being slowly adopted. Some manufacturers are experimenting with nitrogen or new eco-friendly gas blends.
For those who are sourcing transformers today, giving too much attention to performance specs is not the right approach. Instead, you must confirm by asking the supplier what insulation gas is being used. Tomorrow’s compliance headaches can be avoided if you think ahead.
Here’s where things get clever. Instead of relying on a single type of insulation, engineers often combine multiple types. Oil-soaked paper is the perfect example. By itself, paper works fine. With oil filling the pores, suddenly you’ve got a system that resists both electrical stress and mechanical stress while also helping manage heat.
Another example? Epoxy resins with embedded fibers. They give you structural strength, thermal resistance, and stable dielectric properties in one package.
Think of composite insulation as the hybrid car of transformer design. One material covers another’s weakness, and the whole system gets stronger.
So, how do all these materials align in real-world applications?

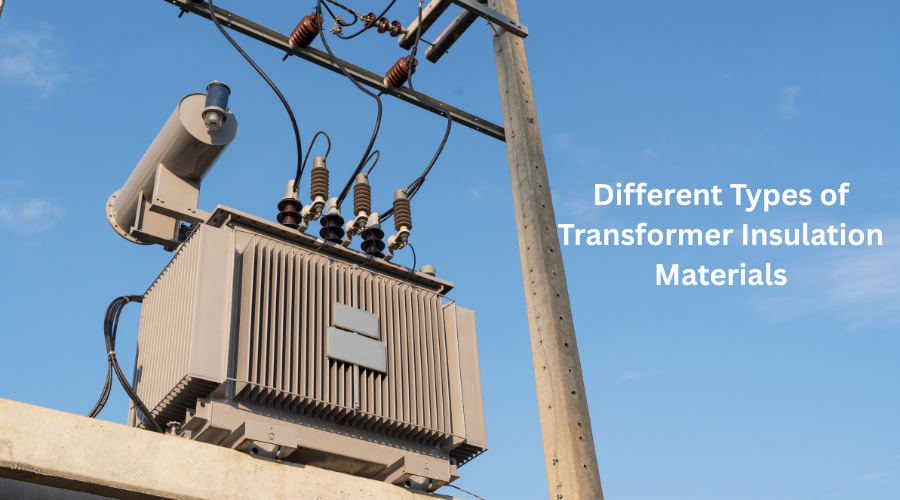

Distribution transformers, which are those smaller units sitting on poles or in small substations, mostly rely on mineral oil and cellulose paper for insulation. They’re cost-sensitive, built for mass deployment, and the combination works well enough when properly maintained.
Power transformers, which are the primary power supply for cities and industries, utilize a wide range of insulation systems, including ester oils, pressboard, and composite insulation systems. These transformers require top-grade insulation materials, as they carry intense loads and tend to overheat.
Gas-insulated transformers are mostly found in confined spaces, such as underground metro systems, offshore rigs, or high-rise buildings.
Dry-type transformers, which do not use oil, rely on epoxy resin insulation. These are typically found inside buildings, hospitals, or other areas where fire risk is a significant concern. They trade a higher upfront cost for a lower fire hazard.
Here’s the advice: match your insulation material to your application. Don’t copy and paste solutions from one scenario to another. A farmer’s transformer and a downtown hospital’s transformer don’t live the same life. Treat them differently.
Even the best insulation fails if you overlook one crucial factor: moisture. Water is the silent killer of transformer insulation. A mere percentage of water content in oil or paper significantly reduces dielectric strength and accelerates aging.
That’s why drying processes, vacuum treatments, and regular oil testing are non-negotiable. Ignore them, and you’ll be replacing parts long before their design life is up.
Conclusion
Transformer insulation isn’t just a technical detail buried in the specs. It’s a necessary protective component that keeps it operational. Paper, oil, gas, composites: they each step in at the right place, the right role, to keep the system alive.
Making the right material choice can make or break the transformer. Choose wrong, and skip maintenance, and you’ll pay for it in failures and fires. Decide carefully if you want your transformer to be operational for decades, quietly doing its work without any disruption.
