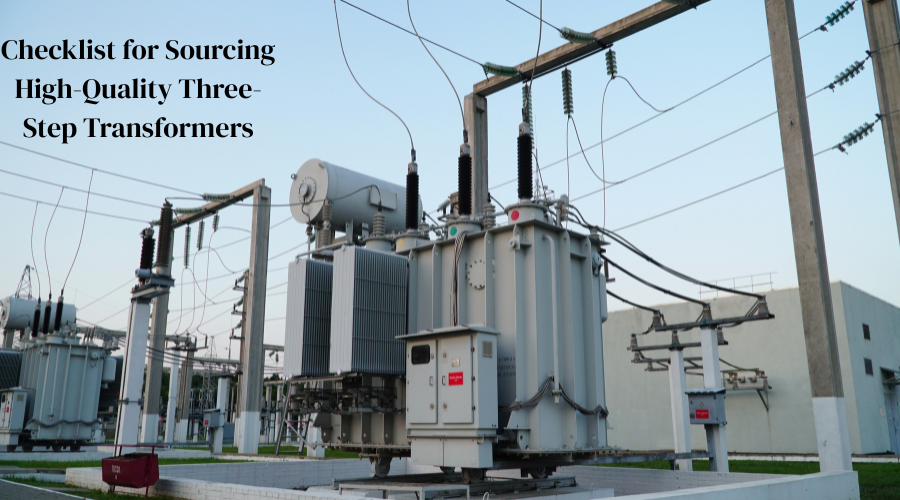

Procuring a three-step transformer means you need to look at every aspect of energy consumption. Any error in selection could cause severe electrical damage where you install it. It could be a wrong configuration, insulation, or even a lack of compliance. So, here is a guideline that can help you choose the three-step transformers you want to aim for. This procurement checklist will help you achieve better, more convenient results.
Before procuring three-step transformers, you will need to know the grid’s compatibility. The grid that will connect with it requires your attention. Find out the energy limit of that grid, and also the transformer you want to select. If they match, that will be great. If they don’t, it will be a big problem for you since a transformer is a massive product that one procures. So, energy compatibility is the first thing you need to know.
It is about voltage, current, and frequency limits. Usually, a three-step transformer works with 100 kVA and above. Some can also handle 5 mVA and near it. That means you will have to find the transformer that has this range of energy capacity. Then it will be able to handle the load coming from the grid and also the demands from end users. The frequency of transformers must be exactly the same as the requirement of the grid. It will keep them connected without any risk of high or low-voltage damage.
The wiring configuration is the second most important step. There are primary and secondary winding types that help design the transformer to perform in different conditions. How the windings are designed contributes to the performance and compatibility of transformers.
Star-star, delta-delta, Star-delta, and delta-star are common winding formats in transformer configuration. You will have to look at the requirements and the compatibility with the suitable configuration. The voltage limit, phases, neutrality, and all the factors are included in it.
Then comes the type of installation you will choose. If it is about indoor installation, the structure will be different. If it is outdoors, it will require additional protection from environmental threats. The moisture, dust, and every corrosive element will cause a threat to the transformer. That means you need to decide their structure and protection level for the optimum selection.
Insulation Type
Without correct insulation, a transformer may get overheated. Different types of transformers need different insulation types. You will find oil-based insulation that prevents short circuits and dissipates the heat. This is a specific type of transformer that contains an oil tank for safe operations inside it.
Then you can find gas-based transformers that contain specific gases like SF6. It is a dense gas that helps to keep the transformer working efficiently without any need for oil. It has a slightly different insulation method and also a less complex one. Since oil insulation needs oil and a large tank, this one requires a different but less complex space.
Then the third is a resin-based transformer that uses resins for insulation. You will have to analyze all these types to decide which one suits you best.
The quality depends on the safety standards followed by a manufacturer. These standards prove how well a transformer will perform. It is about the conductivity, dielectric properties, and durability of transformers. IEC, IEEE, NEMA, and some other standards help you recognize how good a manufacturer is. These standards help them test every transformer they manufacture for safe operations. Every component and its supportive shells have to meet high-quality standards.
The place where you will install a three-step transformer requires special permission and compliance. A transformer has to comply with local regulatory authorities for safe and acceptable results. The grid limit, voltage range, and everything included in it will be part of local standard compliance. Not following this compliance will lead to a penalty or physical damage, like energy failure or shocks. Also, it could affect the grid, which will be a costlier damage one wouldn’t want to face.
Then you need to do manufacturer analysis by collecting suitable names from B2B platforms. In this modern age, everything has been simplified by technology. You will find lots of possibilities from search engines, B2B platforms, and even referrals. Once you gather all the possible names of suppliers, you can go ahead with the final selection. It will include the following steps.
What kind of specifications your manufacturer follows will matter a lot. Ask about the voltage, current, insulation, and every configuration in it. Then comes customization, which can make things more captivating because some suppliers have special production capacity for such features. It is suitable for people who have special requirements for a solar energy system or a customized local energy setup. They can get customized and even standard production of a three-step transformer from the same manufacturer. If you are among them, you will definitely have to include it in the checklist.
Then the initial price and the total cost of ownership come. You will have to look at both because lots of factors are part of it. Logistics cost, maintenance cost, installation cost, and lots of other types will keep increasing the total cost of ownership. So, instead of relying on initial price and a few factors, you should better go for the total cost of ownership.
Procuring a three-step transformer requires lots of steps. One can not just look at a few details and go ahead with the procurement. It demands a thorough analysis because safety and durability are the two primary objectives of a user. Electric shocks and power failures occur when electricity companies fail to select the right type of transformer. It is a long process because the usage is also massive. Voltage, frequency, configuration, insulation, and standard compliance are some of the main factors that help buyers. The type of transformer you choose contributes to the total performance and survival of the transformer.
It is not as simple as it appears because it takes a lot of effort to find a manufacturer who can
