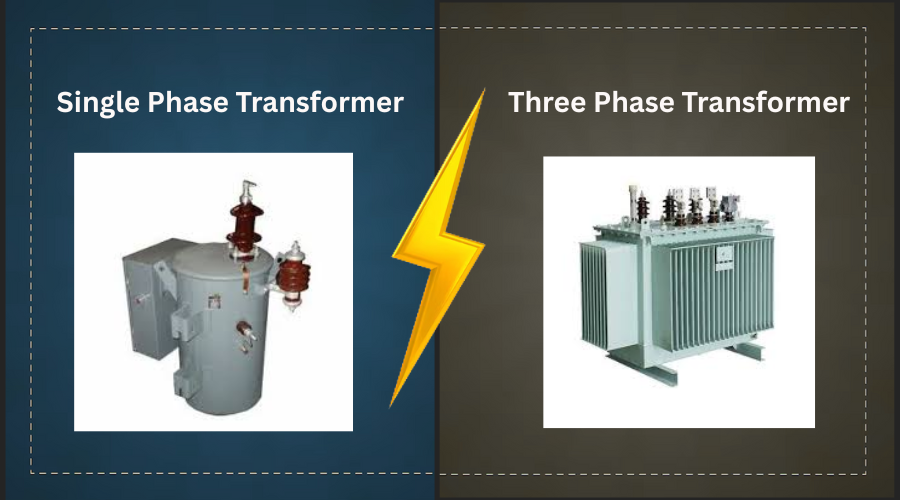

Single Phase Vs Three-Phase Transformer: Which One To Choose?

Without installing transformers, one can’t expect a stable electric flow. Unless the voltage range is stable, appliances can not work correctly. Any fluctuation in it could damage appliances, whether they are in the residential, commercial, or industrial sectors. Each type of sector has specific requirements in the voltage transformation process, and therefore, there is often confusion about the phase selection. People who are not aware of the requirements usually look for the answers regarding the choice between a single-phase and a three-phase transformer. The difference between the types raises numerous questions regarding their applications, advantages, and disadvantages. So, we will simplify everything in this blog for you.

It is a simple transformer that works for single-phase requirements. Due to its low voltage and current requirements, various sectors prefer it for low-cost electric supply. Here are some details that will help you understand how single phase transformer works and what the optimal conditions are for installation.

It features a simple winding design that accommodates both low- and medium-level voltage supplies. The core inside it has one primary and one secondary winding. A phase wire and a neutral wire ensure a stable supply of current for the basic requirements of some sectors.

If we examine its voltage range, it is approximately 120 to 240 volts. Its output can handle up to 240 volts as its maximum capacity. Moreover, it is suitable for loads of up to 100 kVA. However, it can also manage to bear the load of 333kVA. However, it is better to keep the load below it, as excessive load can cause fluctuations and pulsations in the single-phase transformer. This voltage range is sufficient for appliances such as bulbs, fans, refrigerators, air conditioners, and washing machines in the residential sector. Multiple households can get support from a single-phase transformer to run various appliances without any risk of fluctuation.

Unless the load exceeds its capacity, a single-phase transformer can handle regular requirements. If the load exceeds the limit, which often occurs in summer when people use air conditioners, the risk of voltage fluctuations and short circuits within the transformers increases.

·         A single-phase transformer can deal with light and medium loads. For instance, it can provide stable support to domestic needs where the load is not significant due to the use of light appliances in both urban and rural sectors.

·         Even small businesses, such as shops and stalls, can be supported by single-phase transformers. It is a cost-effective transformer type for the low and medium-voltage requirements. Small offices and similar workplaces that require a voltage range of 120 to 240 volts can benefit from it.

·         Since its structure and mechanism are simple, the cost of production and installation is also low. This makes the electric supply system cost-effective for both low- and medium-voltage applications.

·         Single-phase transformers provide a stable voltage supply to power multiple homes in a residential area.

·         Even a small commercial area with low requirements will need a single-phase transformer for stable voltage flow.

·         Anything that happens to the phase will interrupt the whole system. It is because it is a single-phase system with a series configuration.

·         It is not suitable for long-distance energy supply.

·         Likewise, it is not suitable for heavy loads because an overload will start creating fluctuations in it.

·         A single-phase transformer can’t operate without a starting mechanism, which is typically provided by capacitors.

This one is larger and three times the size of a single-phase type. Of course, there will be a higher load-bearing capacity and different working conditions. Therefore, a triple-phase transformer can handle much higher voltage levels, whether for commercial or industrial applications. Since mega machines and grids require an extensive voltage range to run smoothly, only a triple-phase transformer can handle their requirements. Here are further details, which will clarify the concept of how it works and its optimal working conditions.

The structure is complex, featuring multiple winding systems. Unlike the single-phase type, its iron core has three sections for electric winding. Every section features a pair of primary and secondary coils, resulting in higher electricity transformation. Its complex, winding design is the secret of its success, as this design effectively manages the voltage to meet higher loads. Each winding works as a separate phase, allowing for parallel connection within it. Since they are in parallel connections, no phase relies on the others.

Its power range is higher than that of a single-phase type. It goes from handling 100 kVA to above. The load it can handle is 5mVA, and it can hold more. Since factories and grids require a megavolt supply, they rely fully on a three-phase transformer. The power range is expandable, allowing industrial and commercial needs to be fulfilled with adjustments. This entire power supply is stable enough to meet such massive needs, which also prevents accidents and fluctuations.

·         Industrial machines and commercial appliances operate most efficiently with the support of a three-phase transformer. This transformer type has a higher output to meet the increased voltage demands.

·         This transformer, with its triple-phase design, also supports power grids in meeting higher requirements for the forwarding process.

·         A triple-phase transformer is suitable for long-distance energy supply. That’s why it works best at energy grids and factories. These are the places where high output and load-bearing capacities are required.

·         It has a built-in power for the starting mechanism, which means it doesn’t need any separate capacitors for startup. It saves on the cost and effort of transformer starting operations.

·         All three phases are independent, like parallel systems, unaffected by any interruption. That means any interruption in any phase will not affect other phases.

·         Its operating and repair costs are higher because of the complex mechanism. Moreover, its standby unit cost is also high.

Both types of transformers have specific load-managing capabilities. Using every kind at the right place provides cost-effective results. Instead of using three single-phase transformers, it is better to install a three-phase transformer. In that way, the cost of operations will be way lower than using three units of single-phase. Moreover, urban residential areas and small commercial areas can efficiently run on a single-phase transformer. Besides, when the load is increased, using the triple-phase transformer is the right decision. When it comes to grids, industrial sectors, and large commercial sectors, the triple-phase transformer is the best choice. It will help stabilize the voltage flow by supplying significant levels of voltage.
